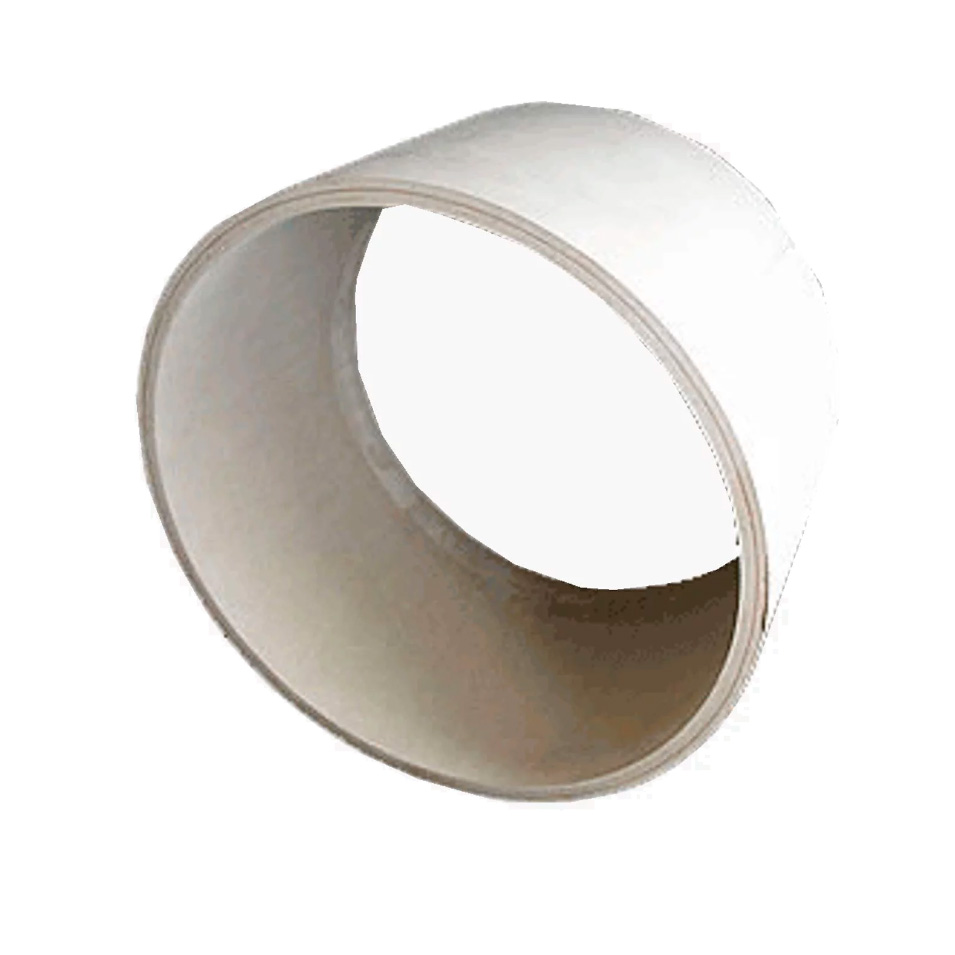

Gladen Frame
Universal round wood body
General Features:
20 mm wall thickness, 10 layers multiplex beech
Better sound due to higher stability
Less vibration due to higher damping
Can be combined with frame - lid
Made in Germany
The "Sub Frame" is available in diameters from 300 - 600 mm (50 mm steps).
In height there are dimensions from 100 to 200 mm depending on the diameter.
Matching lids / bases are available from 300 to 600 mm.
Frame 30_10 Diameter: 300 mm, height 100 mm: 5.3 liters
Frame 30_15 Diameter: 300 mm, height 150 mm: 8 liters
Frame 35_10 Diameter: 350 mm, height 100 mm: 7.6 liters
Frame 35_15 Diameter: 350 mm, height 150 mm: 11.4 liters
Frame 40_10 Diameter: 400 mm, height 100 mm: 10.2 liters
Frame 40_15 Diameter: 400 mm, height 150 mm: 15.3 liters
Frame 45_15 Diameter: 450 mm, height 150 mm: 19.8 liters
Frame 45_20 Diameter: 450 mm, height 200 mm: 26.4 liters
Frame 50_15 Diameter: 500 mm, height 150 mm: 24.9 liters
Frame 50_20 Diameter: 500 mm, height 200 mm: 33.2 liters
Frame 55_15 Diameter: 550 mm, height 150 mm: 30.6 liters
Frame 55_20 Diameter: 550 mm, height 200 mm: 40.8 liters
Frame 60_15 Diameter: 600 mm, height 150 mm: 36.9 liters
Frame 60_20 Diameter: 600 mm, height 200 mm: 49.2 liters
