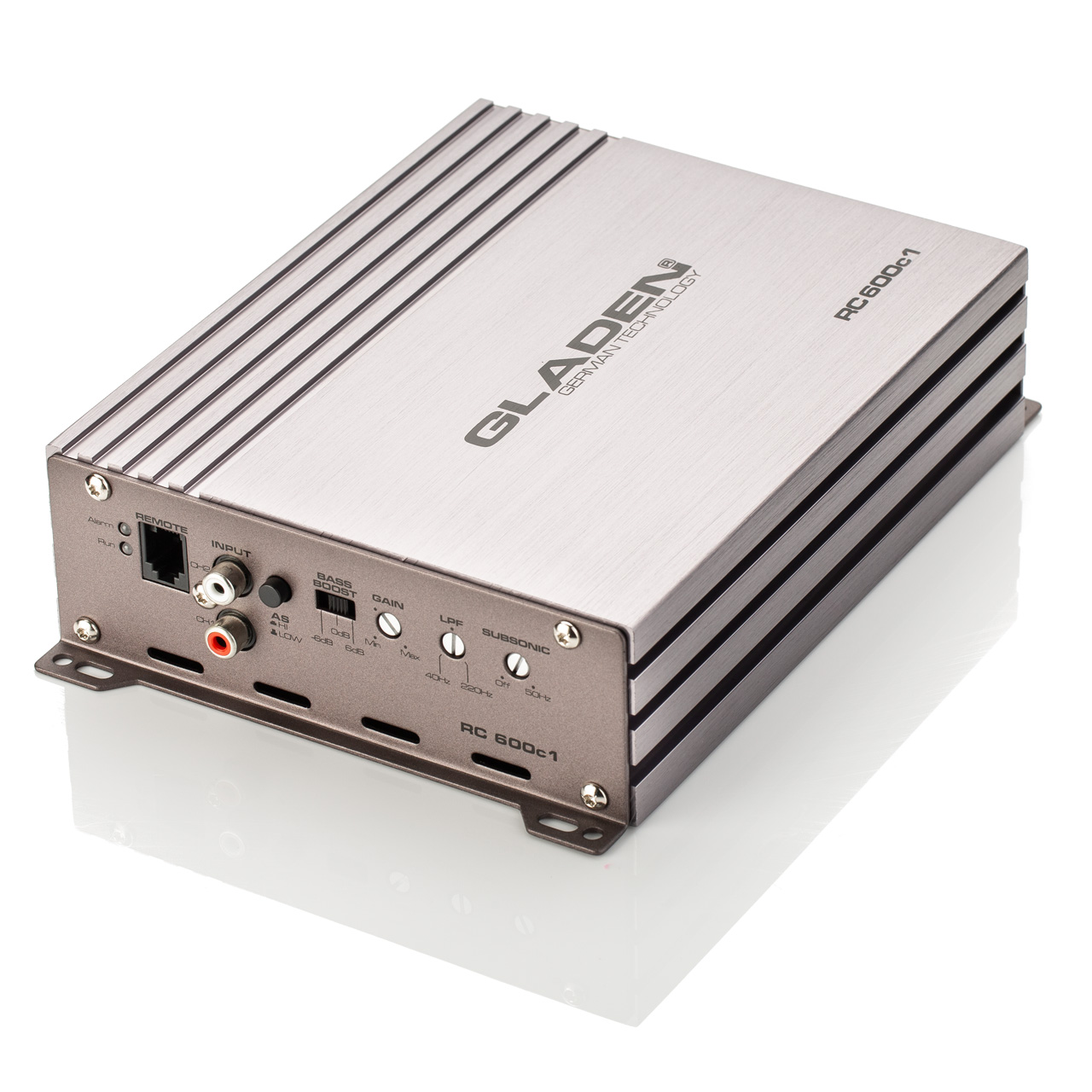

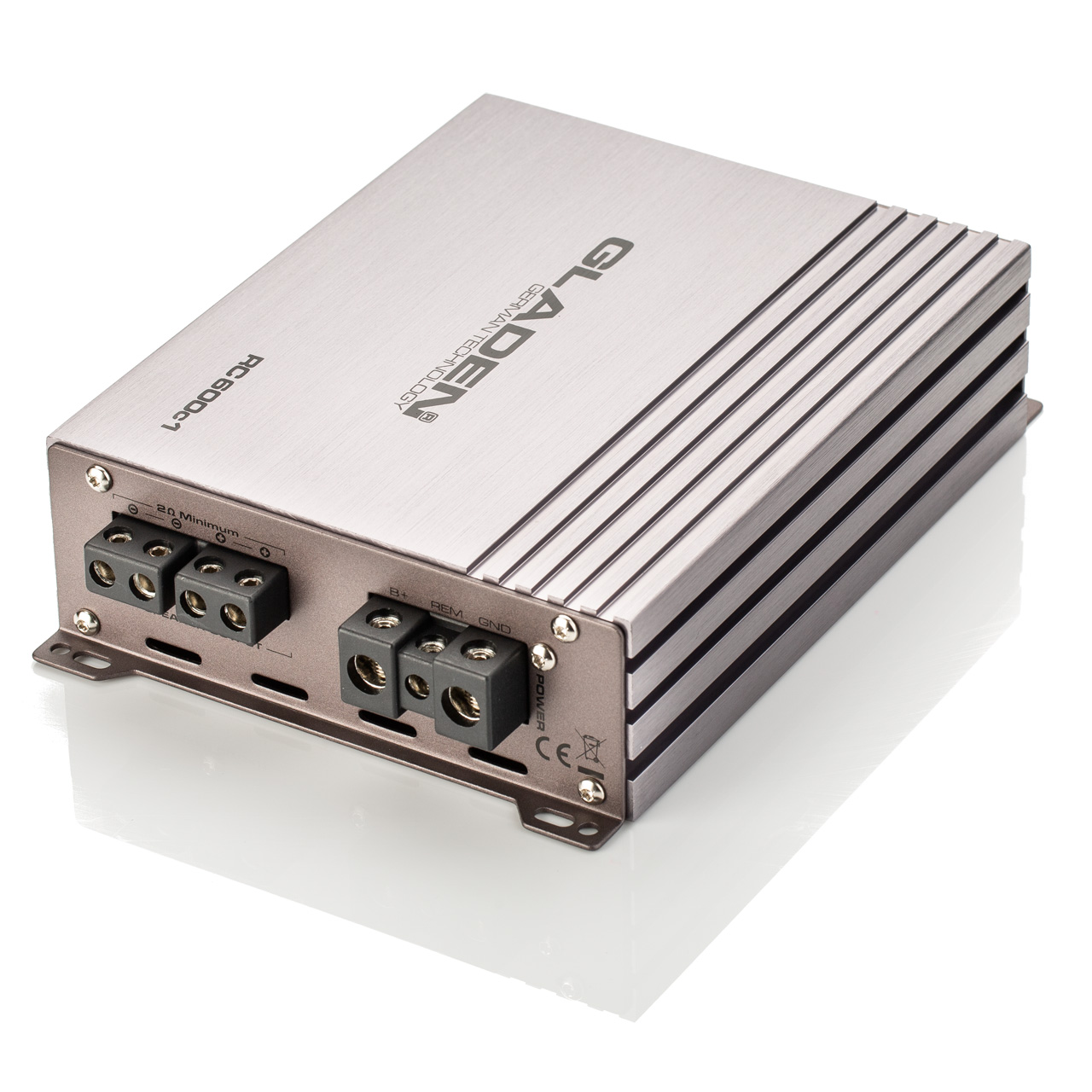

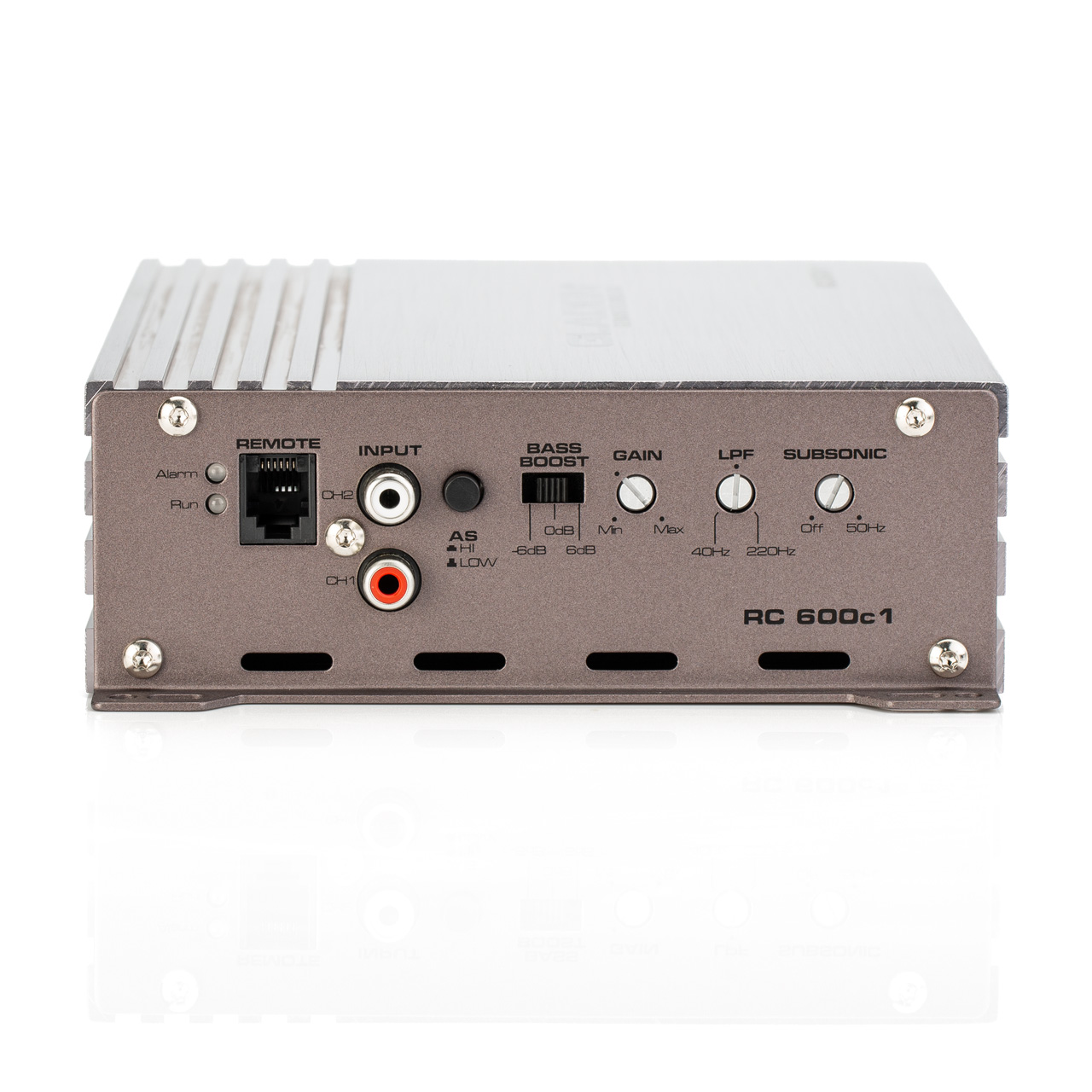

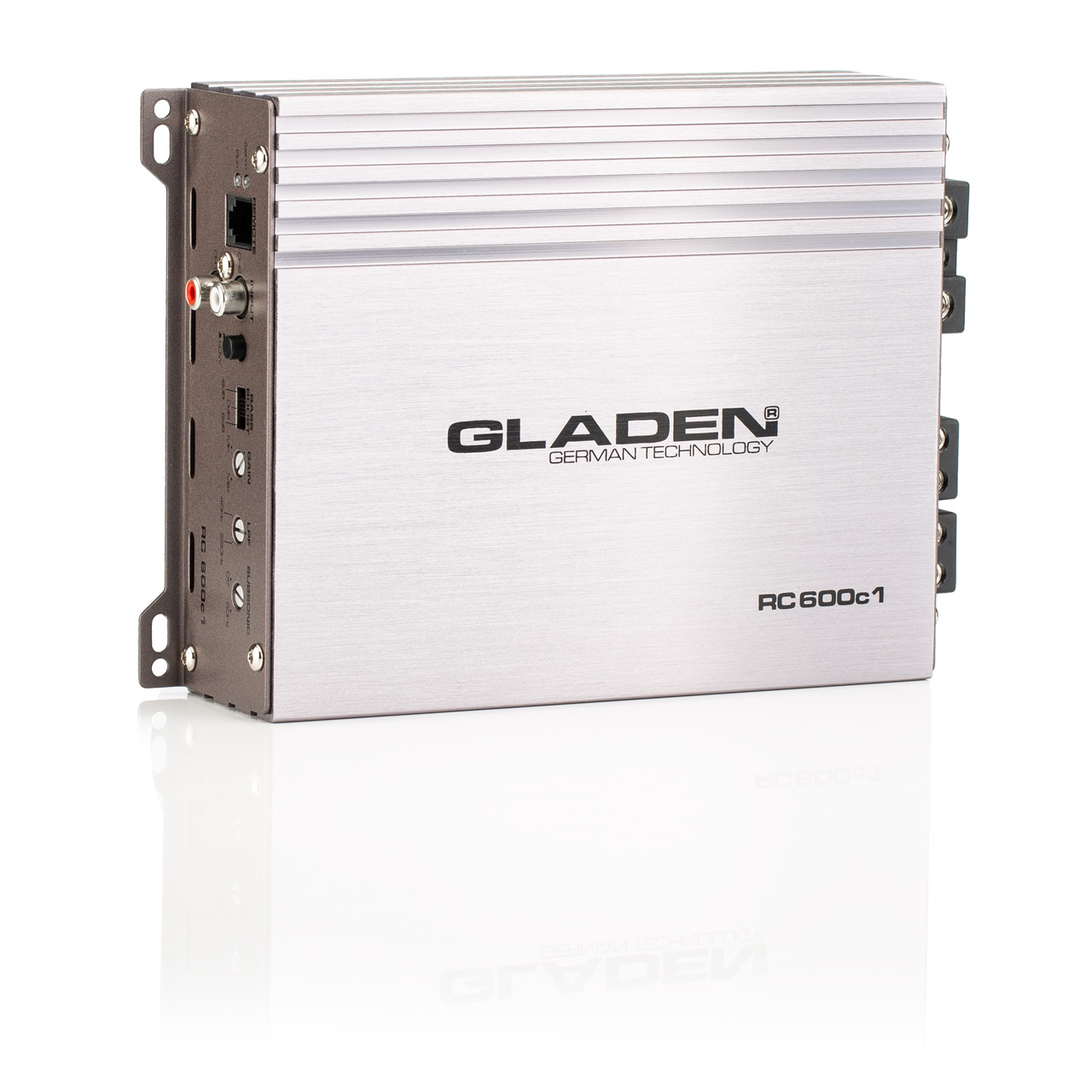

Amplificador RC 600c1
Input with low or high level signal
High level with auto-sense function (no remote control signal required)
Low-pass filter from 40 to 220 Hz
Subsonic filter from 10 to 50 Hz
Bass boost: - 6 dB, 0 dB or + 6 dB
RC-RTC wired remote control (optional)
Overheat, overload, short circuit and speaker DC protection
Solid, heavy aluminum heat sink
4 Ohm: 1 x 360 Watts
2 Ohm: 1 x 560 Watts
CLASS-D
Output power
RMS power, 4 Ohm: 360 Watts
RMS power, 2 Ohm: 560 Watts
Especificaciones
Thermal protection: 80 °C
THD @ 4 Ω / 50% Pmax: 0.5 %
Signal/noise:100 dB
Band width +- 3 dB: 20 - 220 Hz
Input sensitivity: 0.2 - 10 Vrms
Low input impedance: 17 kΩ
High input impedance: 50 Ω (with RC-HLT)
Damping @ 80 Hz: 60
Power consumption, idle: 0.9 A
Weight: 1.72 kg
Dimensions: Length: 208 mm x Width: 150 mm x Height: 50 mm
