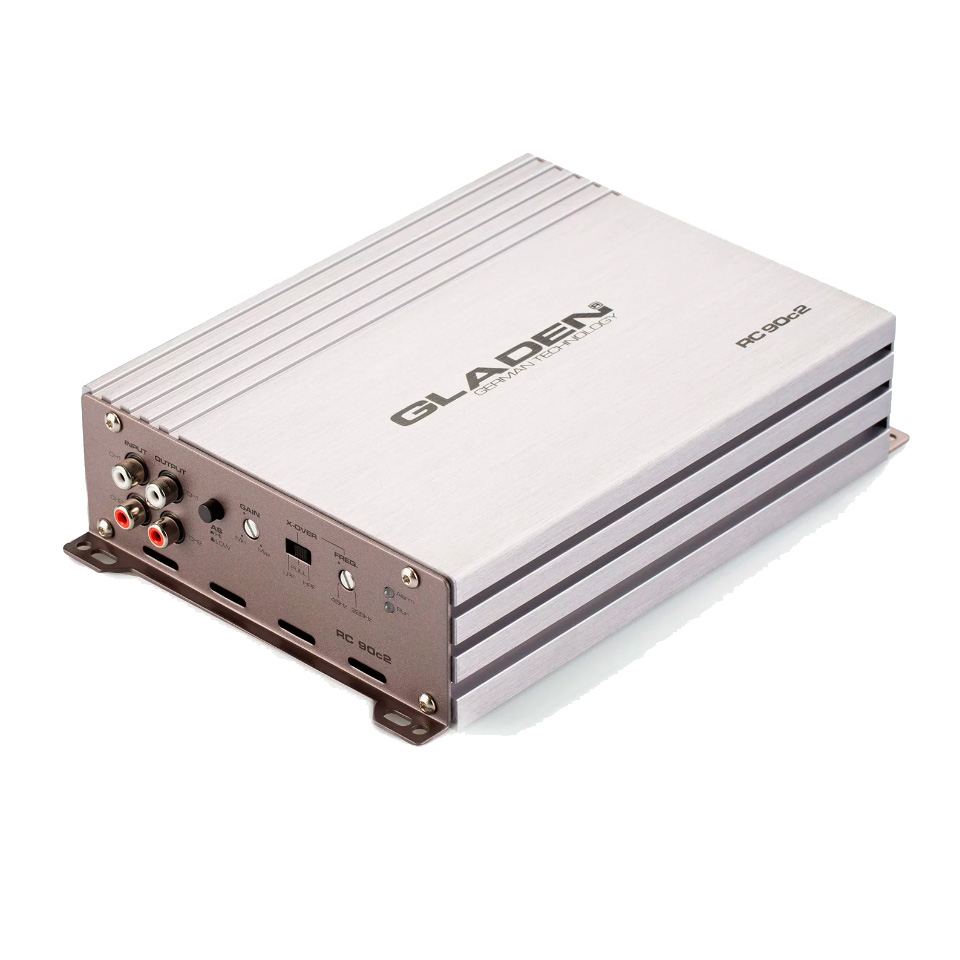

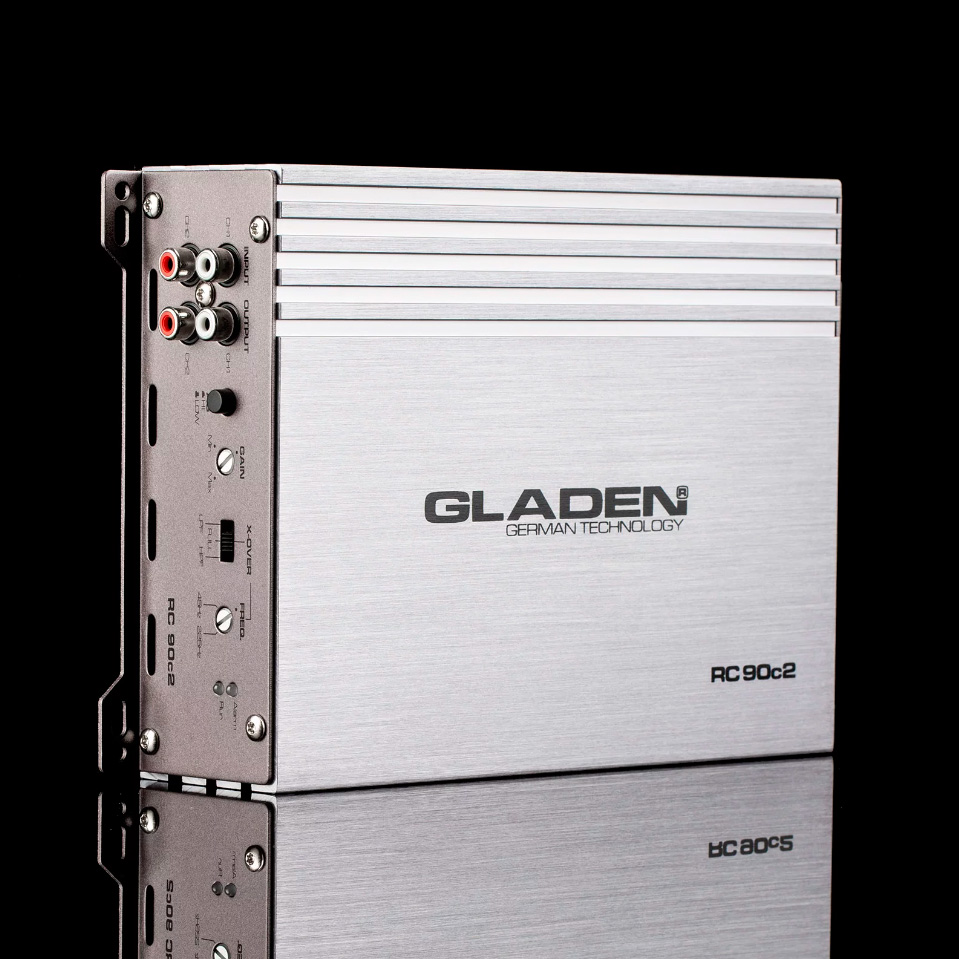

Amplificador RC 90c2

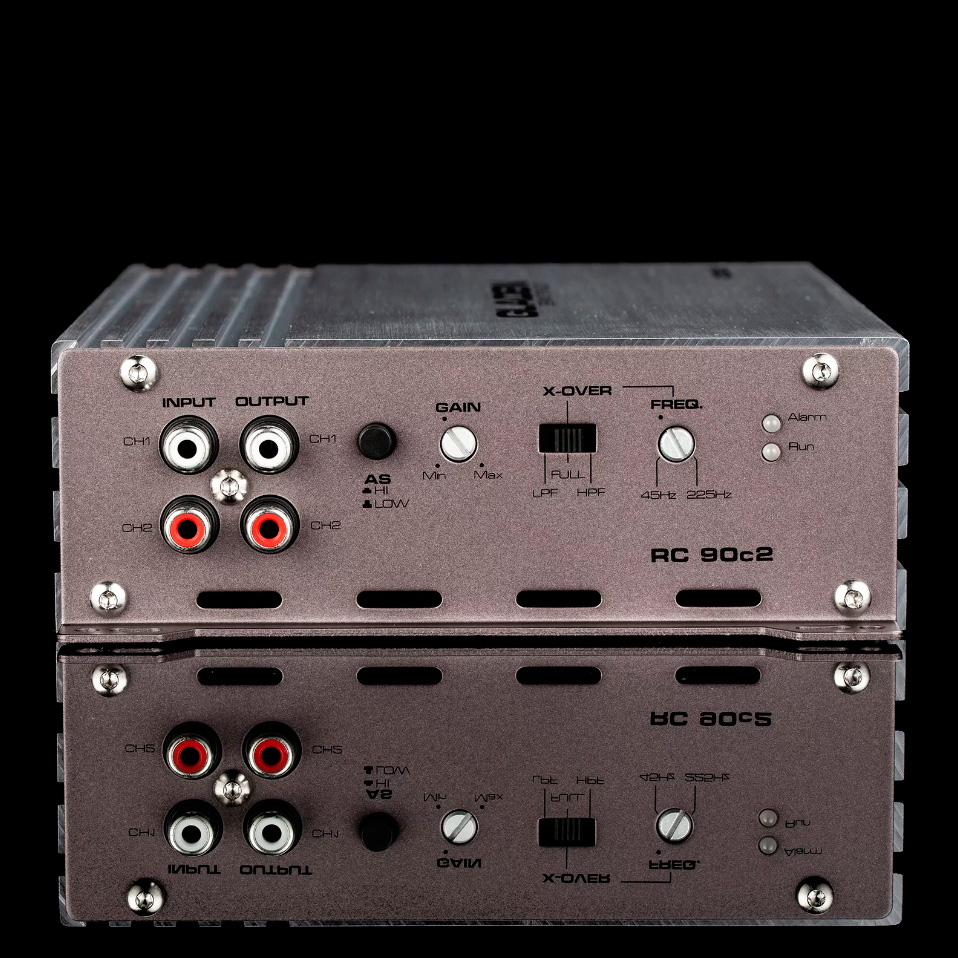

Input with low or high level signal

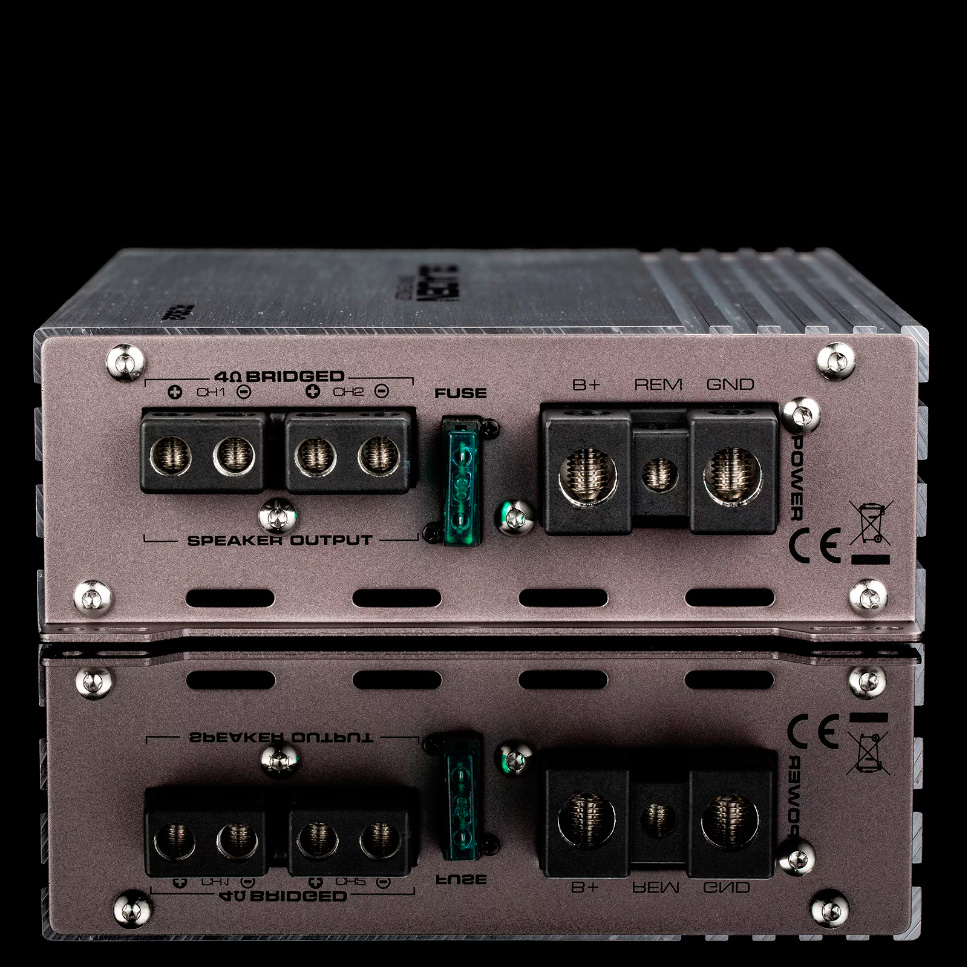

Stable at 2 ohms stereo per channel and 4 ohms bridge operation
High level with auto-sense function (no remote signal required)
Variable switchable low-pass filter from 45 to 225 Hz
Variable switchable high-pass filter from 45 to 225 Hz
2-channel amplifier Class A/B
High-level with auto sense
Double-sided PCB and
SMD components
Power output
RMS power, 4 Ohm: 2 x 85 Watts
RMS power bridged, 4 Ohm: 1 x 260 Watts
Especificaciones
Thermal protection: 80 °C
THD @ 4 Ω / 50% Pmax: 0.5 %
Signal/noise:100 dB
Band width +- 1 dB: 20 - 20000 Hz
Input sensitivity: 0.2 - 10 Vrms
Low input impedance: 17 kΩ
High input impedance: 50 Ω (with RC-HLT)
Damping @ 80 Hz: 50
Power consumption, idle: 0.5 A
Power cons. 4 Ω stereo: 18 A
Power cons. 4 Ω bridged: 32 A
Power cons. 2 Ω stereo:32 A
Weight: 1.67 kg
Dimensions: Length: 215 mm x Width: 150 mm x Height: 50 mm
