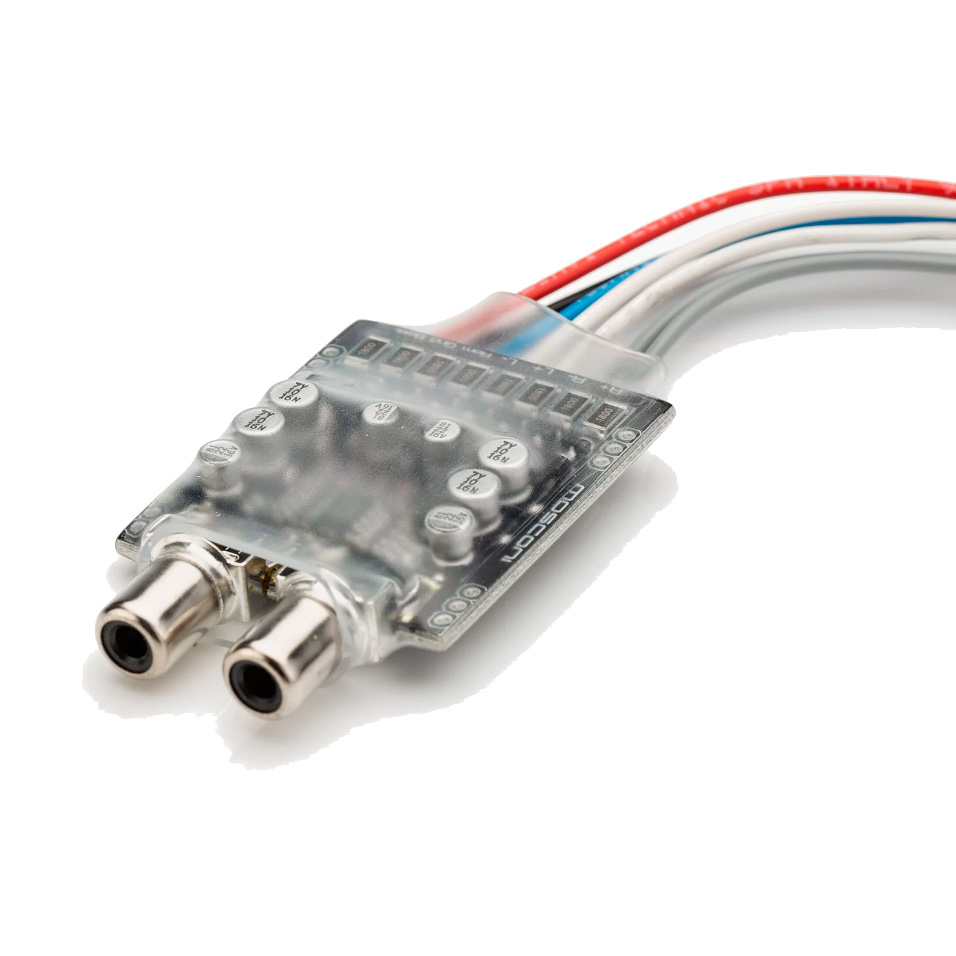

Mosconi HLA-Slim
High Level input
High Level Adapter
2 channel and 4 channel version
As 2-channel (Slim) and 4-channel (Dual) or as 2-channel HP (High Power).
No plastic housing and connector, therefore very small and easy to install
HLA SLIM HP loadable up to 50 Watt
Remote output loadable with 100 mA
Made in Italy
HLA-Slim / Dual are able to produce a stable and useful REMOTE signal only if the headunit is an high power unit (BTL).
On these kind of headunits, each output has a steady state voltage which is used to detect when the headunit is powered on.
HLA-Slim and/or Dual need at least 3Vdc on at least one of its inputs.
These devices are not intended to sense the music signal, but only the dc voltage present on each BTL output.
Stand-By Current Consumption: < 0.8 mA
Operative Current Consumption: < 15 mA (< 30 mA in the dual version)
Polarity Inversion Protection: Yes
Max allowed current on Remote Out: 100 mA (normal operation)
Min allowed load on Remote Out: 120 Ohm (normal operation)
Remote Out Voltage: > 12 V @ Irem-out < 100 mA
Remote Out Short Circuit Protection: Yes (to ground)
Max Short Circuit duration on Remote Out: < 10 second (*)
Total Harmonic Distortion: < 0.01 %
Slew Rate: 10 V/uS
S/N Ratio: > 100 dB
Channel Separation: > 60 dB
Common Mode Noise Rejection: > 60 dB
Stepdown conversion ratio: 4:1 V/V
High Level Input ballast impedance: 45 Ohm / 2 W each channel
Max continuous (sinewave) Power handling @ 4Ohm: 25 Wrms x CH
Max allowed Head-Unit nominal power handling: 50 W x CH (**)
Max Output Signal @ THD: < 0.1 % 3.2 Vrms
Min Output Load Impedence: 2 kOhm
(*) if max allowed time is exceeded, permanent damages to device may occour.
(**) maximum real RMS nominal power, not PMPO, peak, etc.
