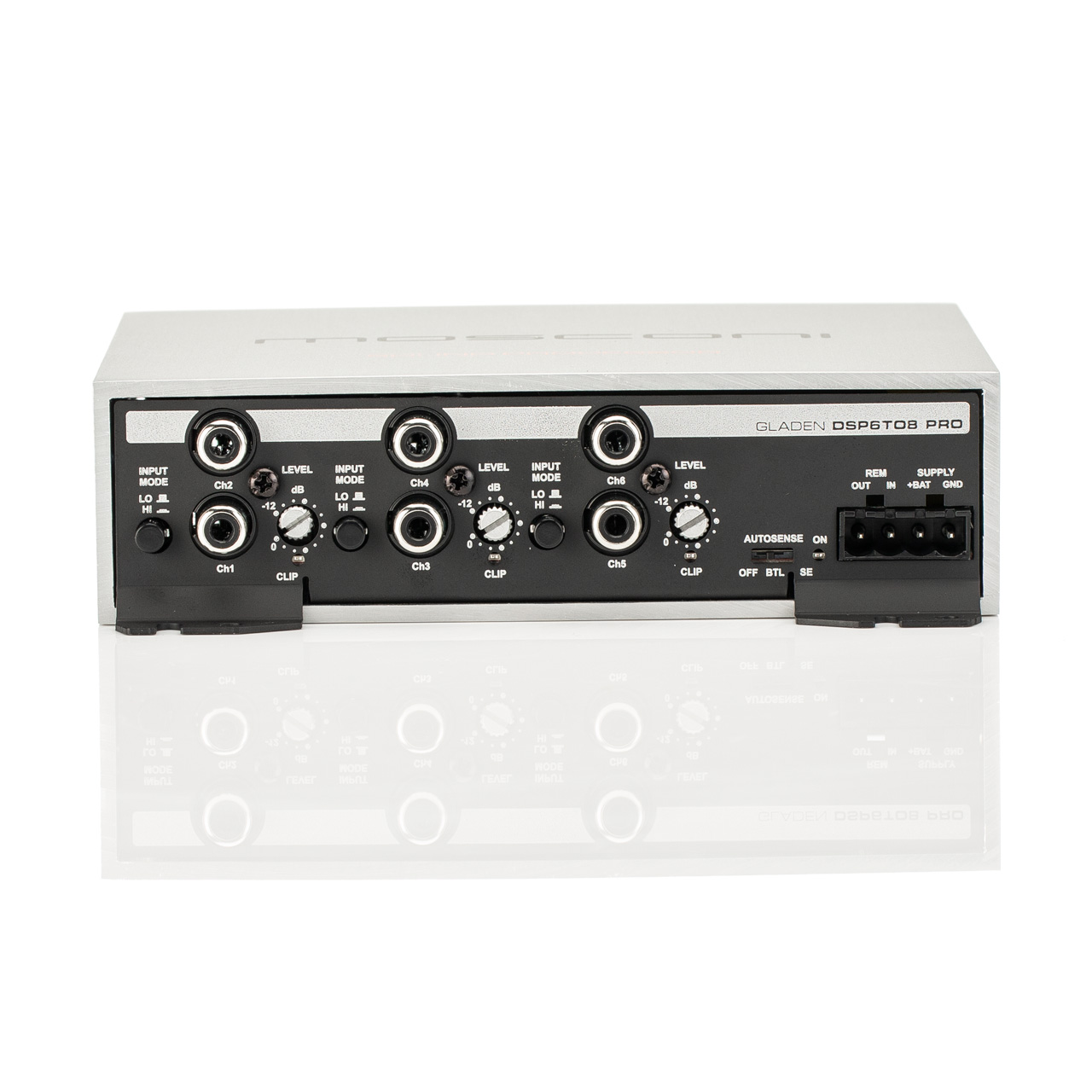

Inputs

6 x RCA (Cinch), switchable high/low level with autosense

1 x BT interface, (only compatible with BTM)

2 of them freely selectable as prioritized auto-fade/aux

ATOM Mixer menu with dynamic preset switching and "trigger" control

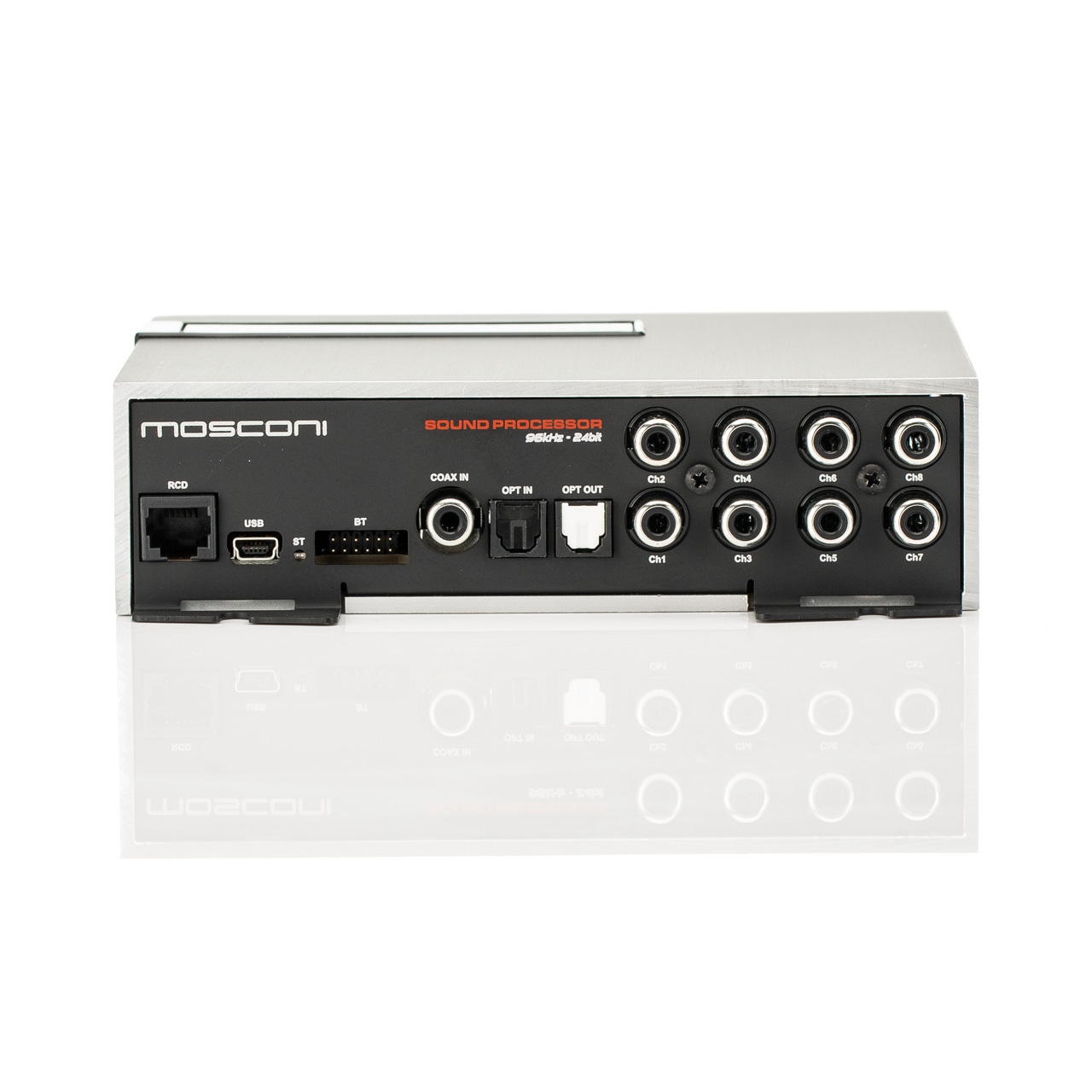

Outputs

8 x RCA analog

12 V remote-out / autosense at high level signal

Equalizer

Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40

Fixed: Channels Front (1 - 4)

Assignable channels: 5 + 6 = front, rear 7 + 8 = sub, center, free

Filter

5 per channel freely configurable

Highpass, lowpass, shelf, notch, allpas, peak EQ

Slope 6 - 120 dB/oct, variable Q, time and level

Other

Time correction 0 - 12 ms (0.020 ms steps)

Input delay (channels 1 - 6) for correction of run-time delayed factory systems

Phase shift 0 - 180°

Level adjustment outputs (0.5 - dB steps)

Mute function

4 x preset memory (switching without sound interruption)

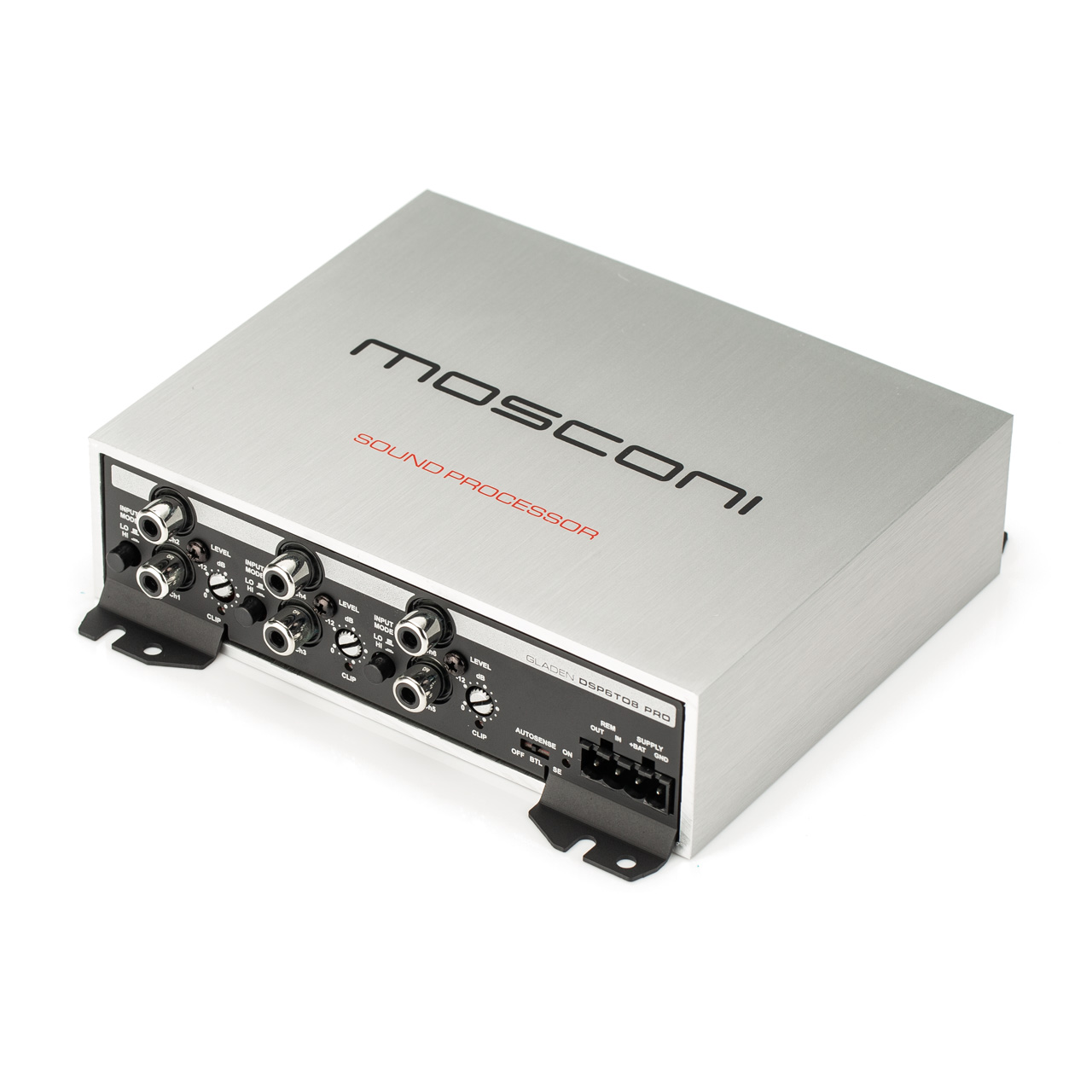

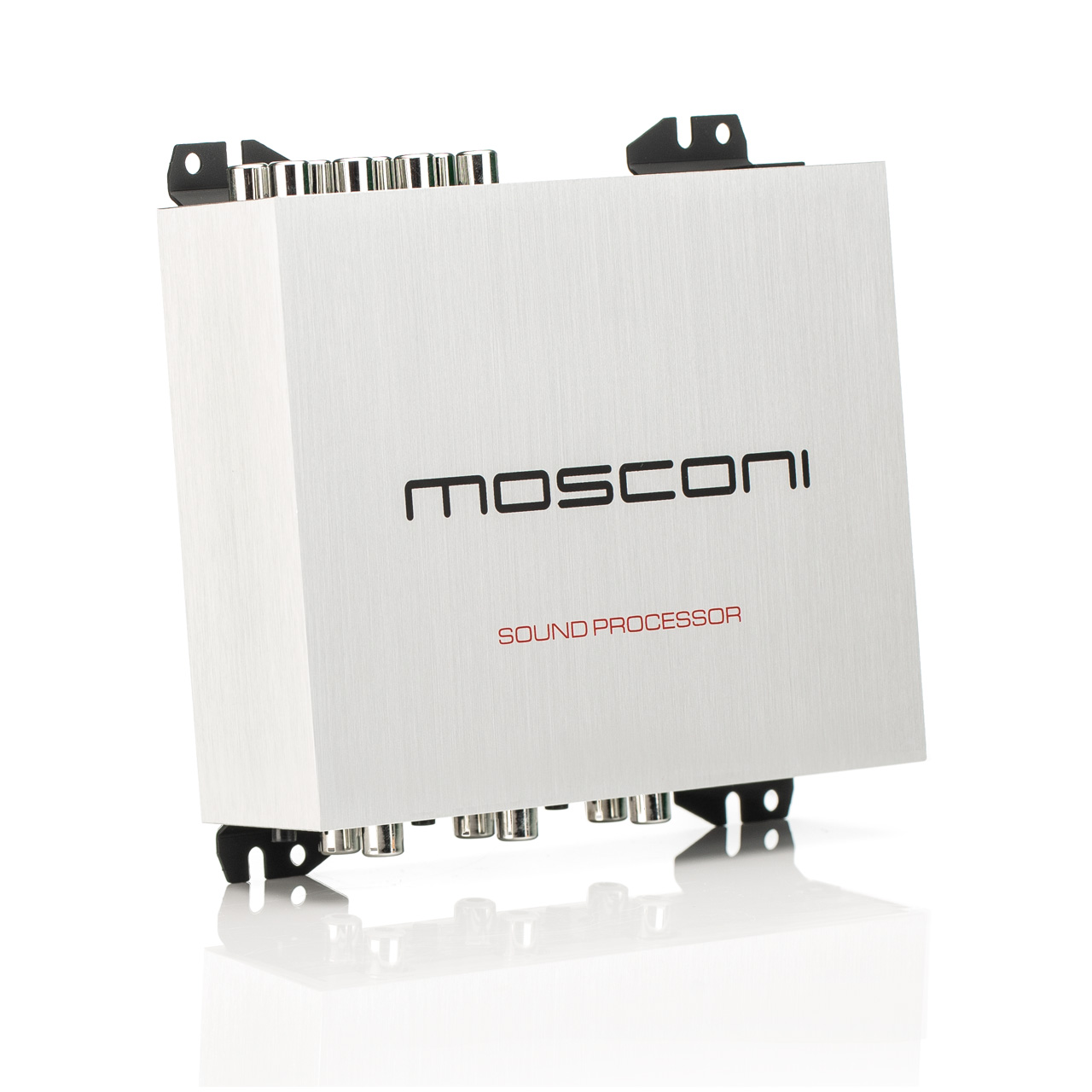

Dimensions: 150 x 125 x 40 mm (incl. mounting flange)
