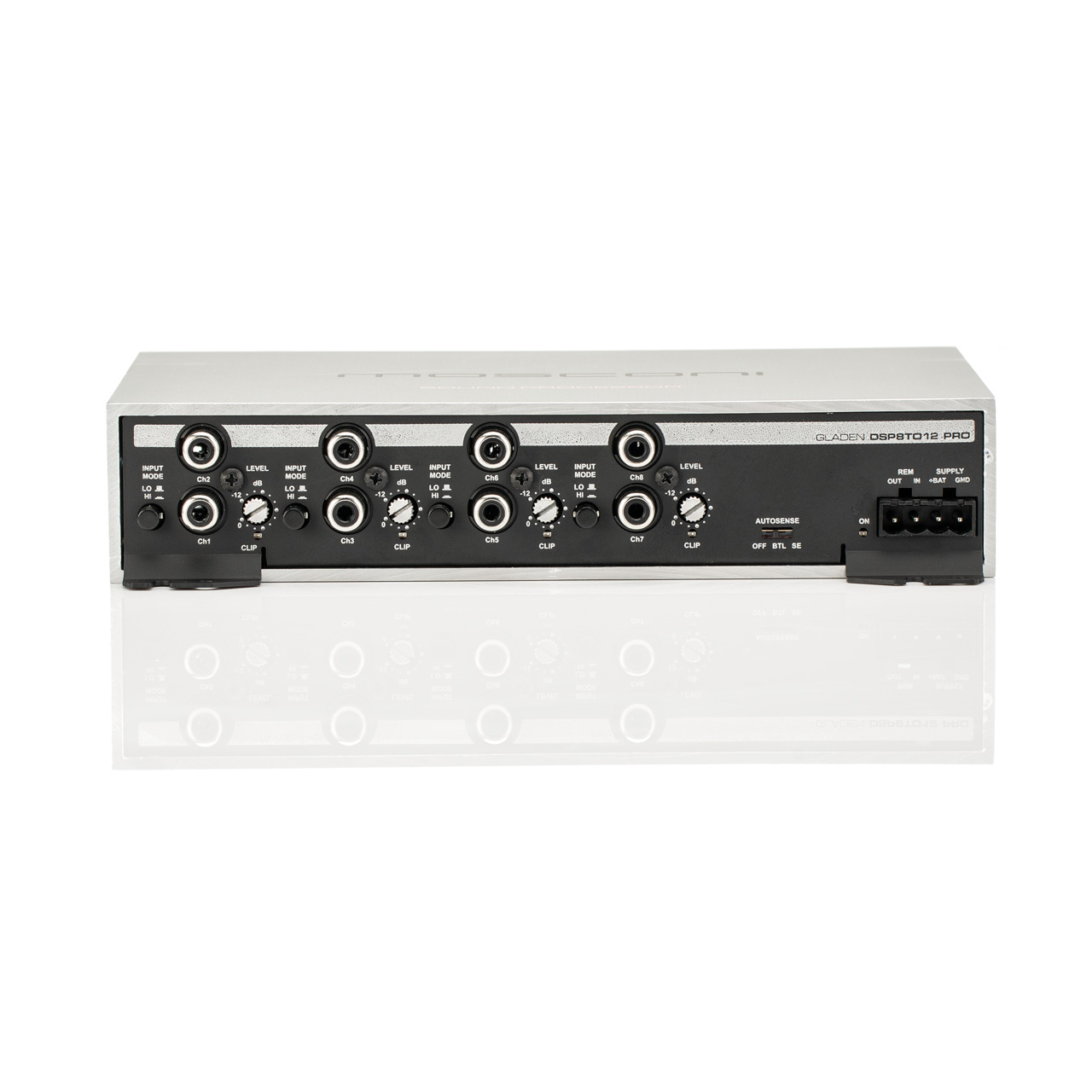

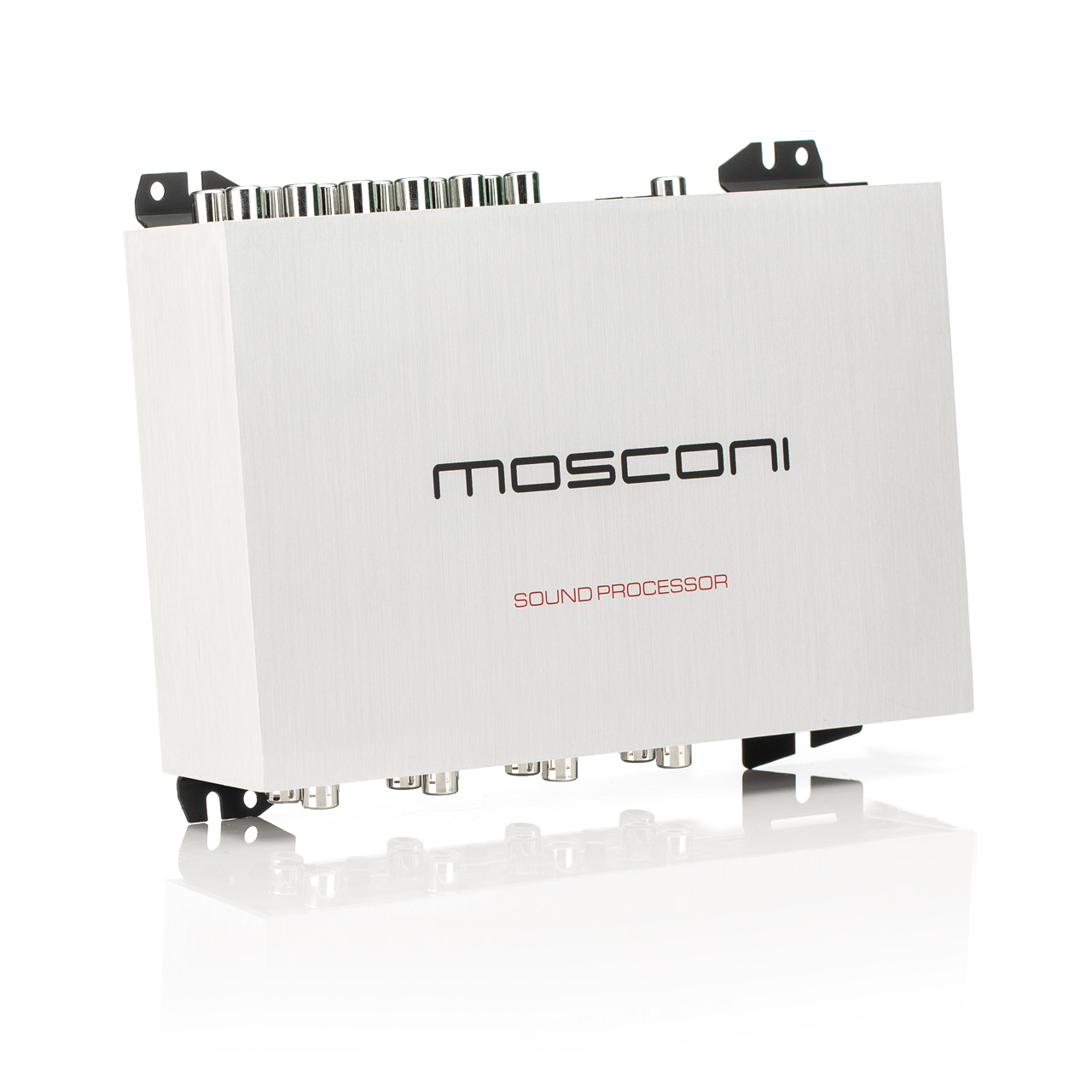

Mosconi DSP 8TO12 Pro
Digital Signal Processor
8-channel input
12-channel output
High resolution
6to8 audio performance
1 x digital IN / direct-audio-streaming (optional)
48 kHz/24 Bit High Resolution-Audio
High Resolution BT Pure Digital Direct Streaming
You love music in highest sound quality!
With the optional MOS-BTS you play your music lossless. The best part is, it happens wirelessly via BT. Just start your music on your smartphone or tablet and the DSP just plays it. How the DSP knows what to do... ATOM Auto Fade Trigger Option Menu!

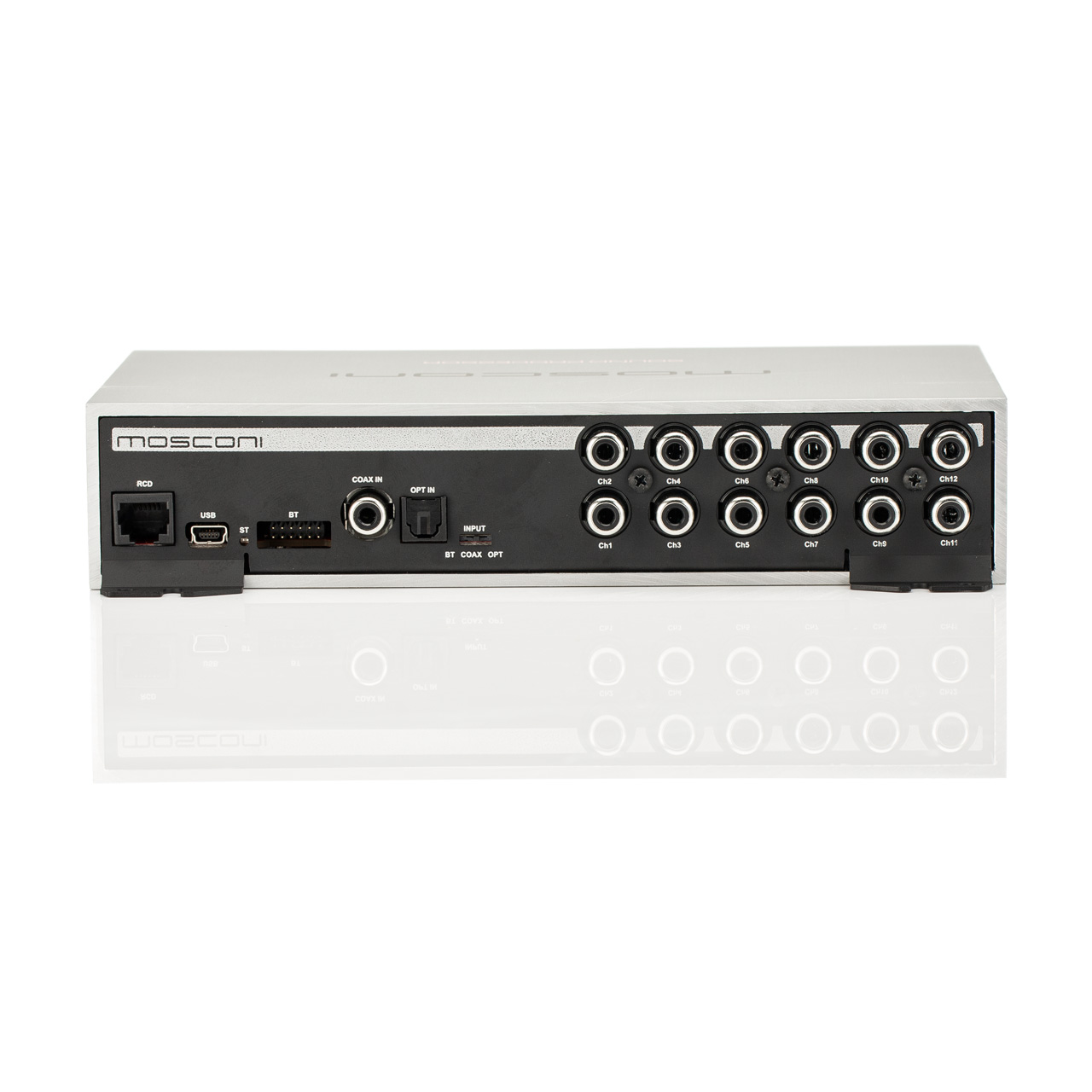

Inputs
8 x RCA (Cinch), switchable high / low level with autosense
4 of them freely selectable as prioritized auto-fade/aux
1 x digital input, optionally usable as:
1 x S/PDIF digital optical
1 x RCA digital COAX
1 x BT slot
ATOM Mixer menu with dynamic preset switching and "trigger" control
Outputs
12 x RCA analog
1 x S/PDIF optical (freely assignable, volume controlled)
12 V remote-out / autosense bei high level-signal
Equilizer
Fully parametric 30 band EQ, can also be used graphically, + 12 to - 12 dB, Q: 0.5 - 40
Fixed: Channels Front (1 - 6) Channels Rear (9 + 10)
Assignable channels: 7 + 8 = Front, Rear 11 + 12 = Sub, Center, Free
Filters
10 per channel freely configurable, (setting without sound interruption)
Highpass, lowpass, shelf, notch, allpas, peak EQ
Slope 6 - 120 dB/Oct, variable Q, time and level
Others
Time correction 0 - 12 ms (0.010 ms steps) (setting without sound interruption)
Input delay (channels 1 - 6) for correction of run-time delayed plant systems
Phase shift 0 - 180°
Level adjustment outputs (0.5-dB steps)
Mute function
4 x preset memory (switching without sound interruption)
Dimensions: 200 x 125 x 40 mm (incl. mounting flange)
