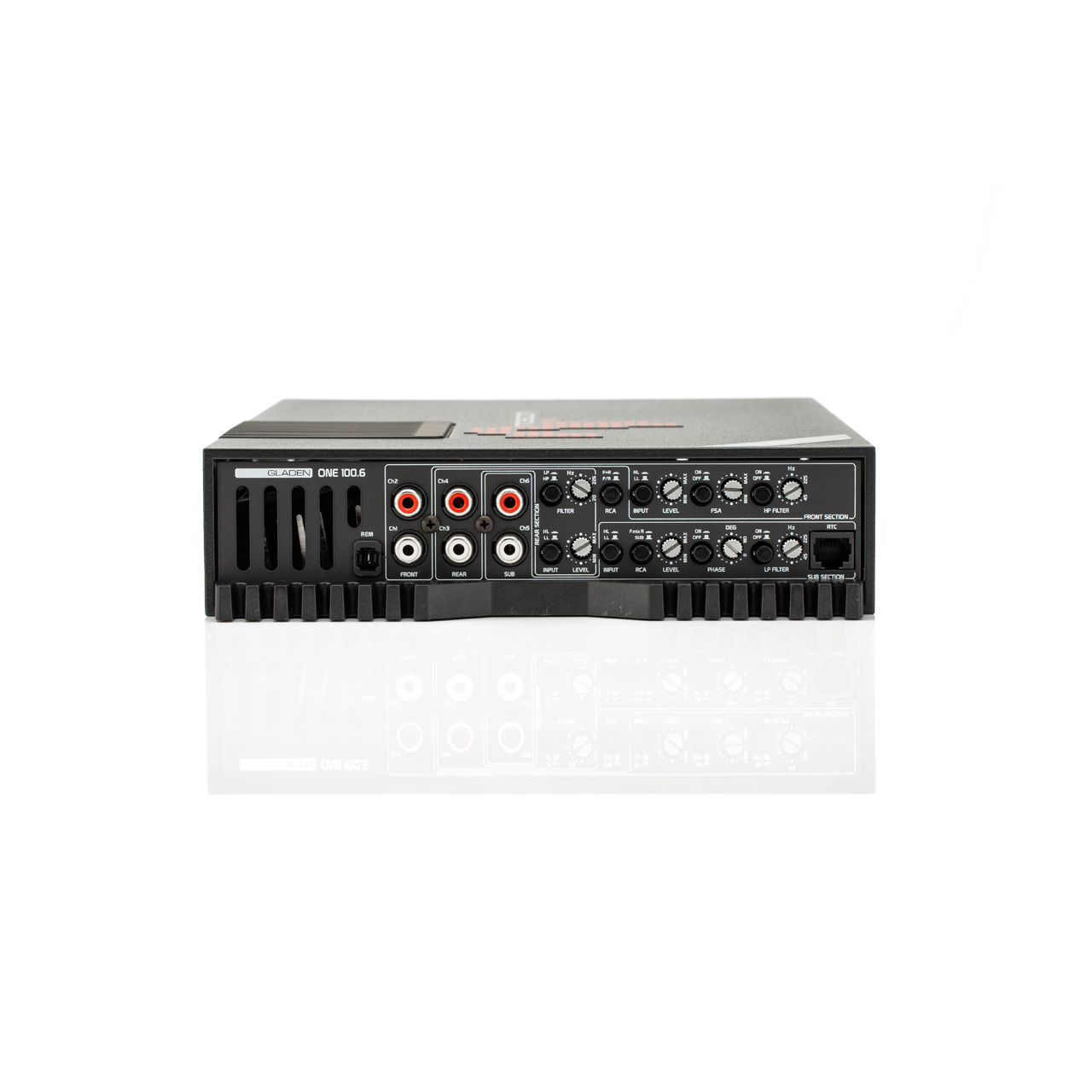

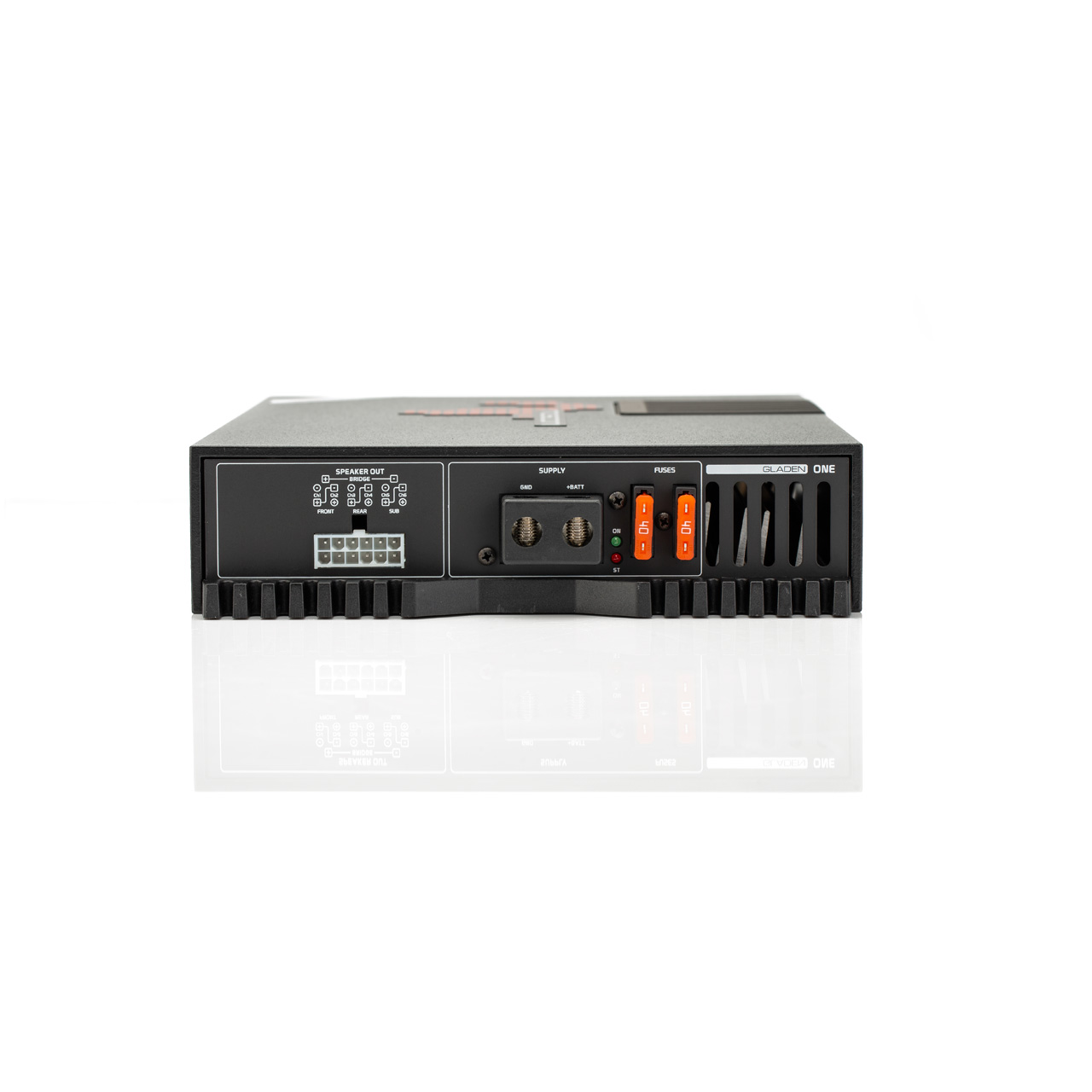

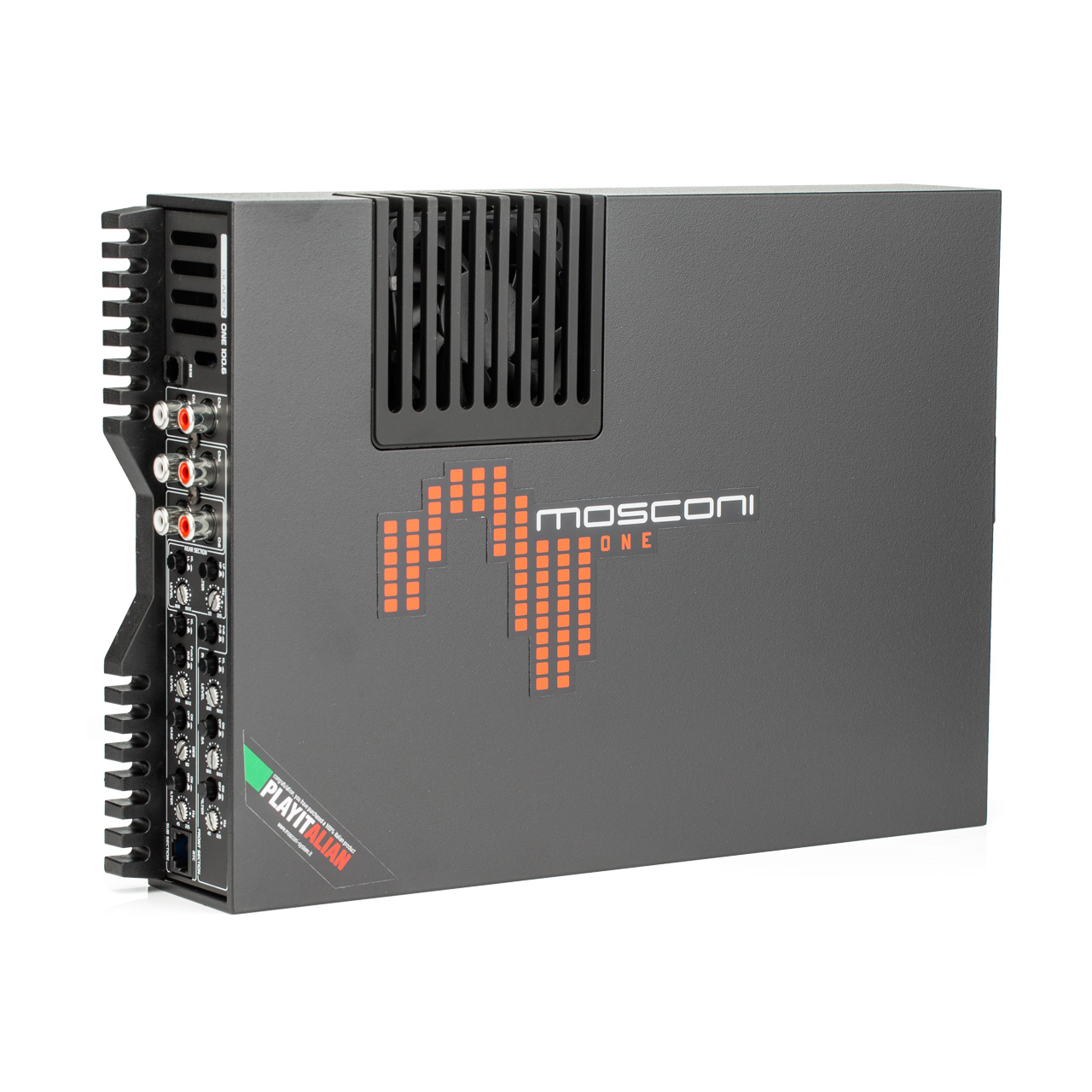

Mosconi One 100.6
6 channel high quality amplifier
6 channel amplifier
Class AB technology
Up to 6 x 120 Watts @ 2 Ohm
The MOSCONI ONE 100.6 is a universal 6 channel high quality amplifier in Class AB technology. It is the ideal amplifier for speaker systems in combination with efficient subwoofers. The ONE 100.6 is equipped with a switchable FSA function. The FSA (Front Stage Adjuster) is based on an adjustable phase shift in a defined frequency range, and improves the stage imaging of your front speakers. This amplifier plays powerfully and offers superior sound characteristics thanks to the analog Full Mosfet-technolo
Remote volume control (optional)
Low level / high level input mode (by switch)
FSA (FRONT section)
Phase shift (SUB section)
Auto sense (only in high level mode)
Output Power
Output power @ 4Ω: 6 x 100 Watts
Output power @ 2Ω: 6 x 120 Watts
Output power @ 4Ω: 4 x 95 Watts + 1 x 250 Watts BTL
Bridged Output power @ 4Ω: 3 x 240 Watts
Specifications
Input sensitivity: 0.35 V - 16 V
Crossover channel 1 + 2: 45 - 225 Hz – 12 dB/Oct - HP (ON-OFF)
Crossover channel 3 + 4: 20 - 225 Hz – 12 dB/Oct - LP or HP (always ON)
Crossover channel 5 + 6: 45 - 225 Hz – 12 dB/Oct - LP (ON-OFF)
Dimensions: 310 x 200 x 50 mm
Weight: 2,7 kg
