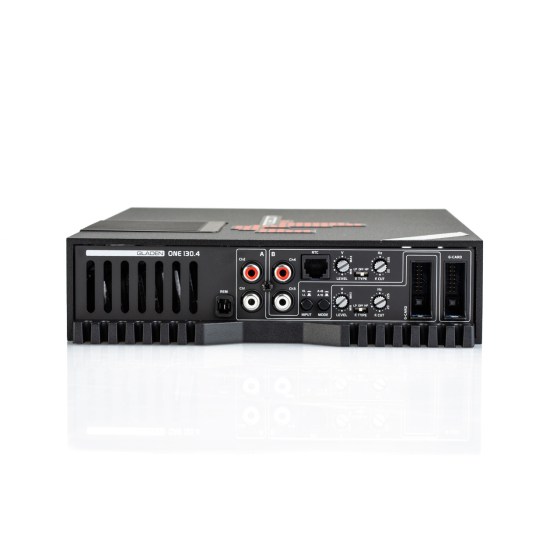

Mosconi One 130.4
4 channel high quality amplifier
4 channel amplifier
Class AB technology
Up to 4 x 175 Watts @ 2 Ohm
12 V and 24 V version
Also available as molex version
The MOSCONI ONE 130.4 is a universal 4 channel high quality amplifier in Class AB technology. It is the ideal amplifier for speaker systems and/ or medium-sized subwoofers. The ONE 130.4 is designed as a double stereo amplifier, but can also be operated in three-/ or two-channel mode. This amplifier is powerful and thanks to the analog Full Mosfet-technology has outstanding sound characteristics.
The ONE 130.4 is available as a MOLEX version (ONE 130.4 M) or with a conventional screw terminal.
Remote volume control (optional)
G-HOC slot
Low level / high level input mode (via switch)
Auto Sense (only in High Level mode)
24 Volt version for truck operation available
Output Power
Output power @ 4Ω: 4 x 130 Watts
Output power @ 2Ω: 4 x 175 Watts
Bridged Output power @ 4Ω: 2 x 350 Watts
Specifications
Input sensitivity: 0.35 V ÷ 16 V
Crossover: 20 - 225 Hz / HIGH pass - LOW pass - OFF
Dimensions: 310 x 200 x 50 mm
Weight: 2,6 kg
