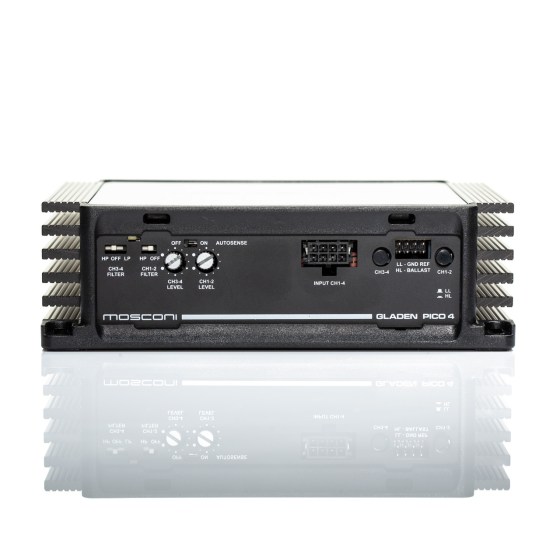

Mosconi Pico 4 / Pico 4 SA
4 channel PWM amplifier
4 channel amplifier
Class D technology
Up to 480 Watts total power
Pico 4 also available as 24 Volt version
Four channel full range PWM amplifier with separate synchronized modulation. Up to 480 Wrms total power, bridgeable and 2-Ohm stable. Thus, the Mosconi PICO 4 masters any constellation: whether classic front-sub / front-rear concepts, doorboard, two subwoofers or subwoofers with dual voice coil. Ideal supplement to a Mosconi PICO DSP amplifier, but with the high-level and low-level input and its own filters, it can also be used universally

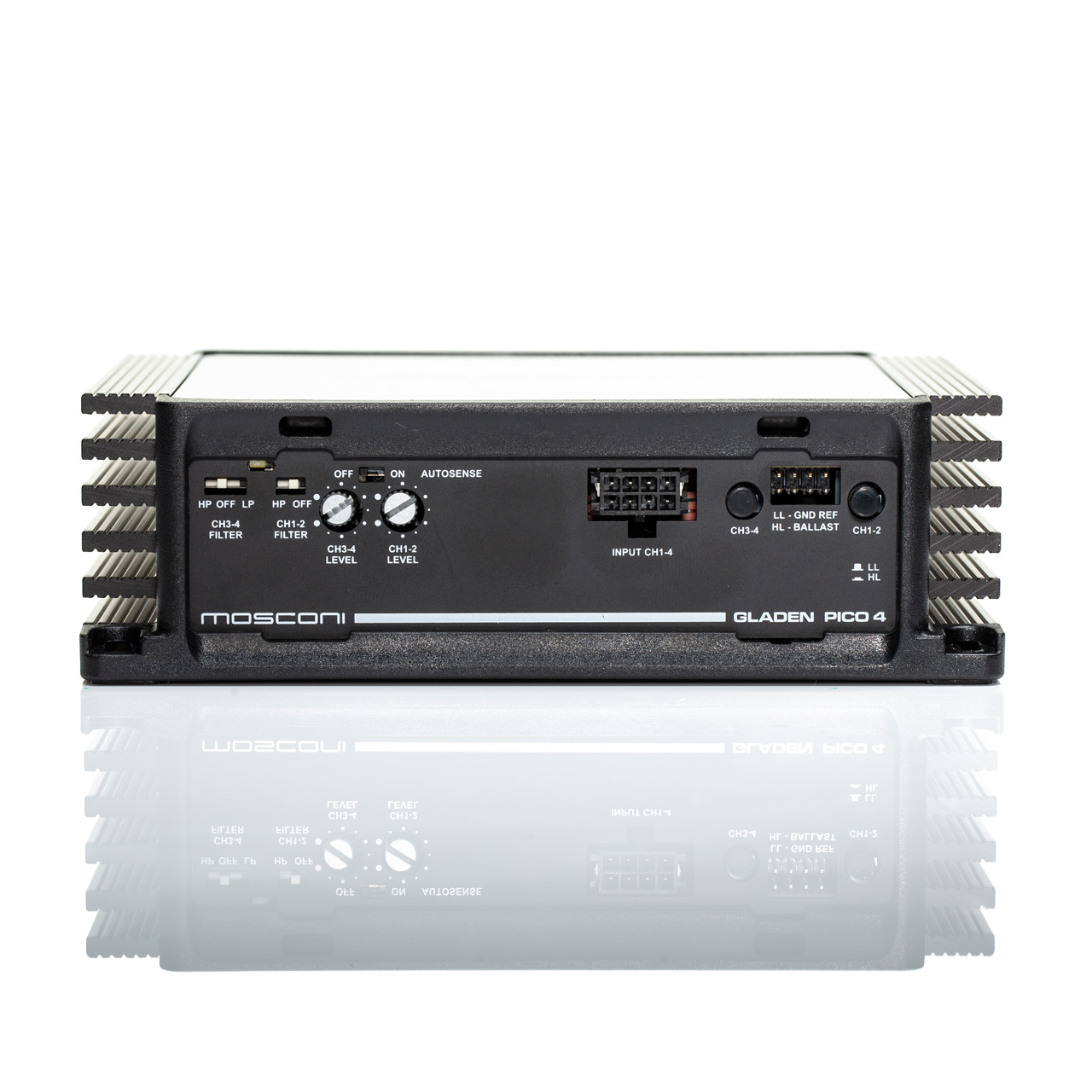

Active crossover

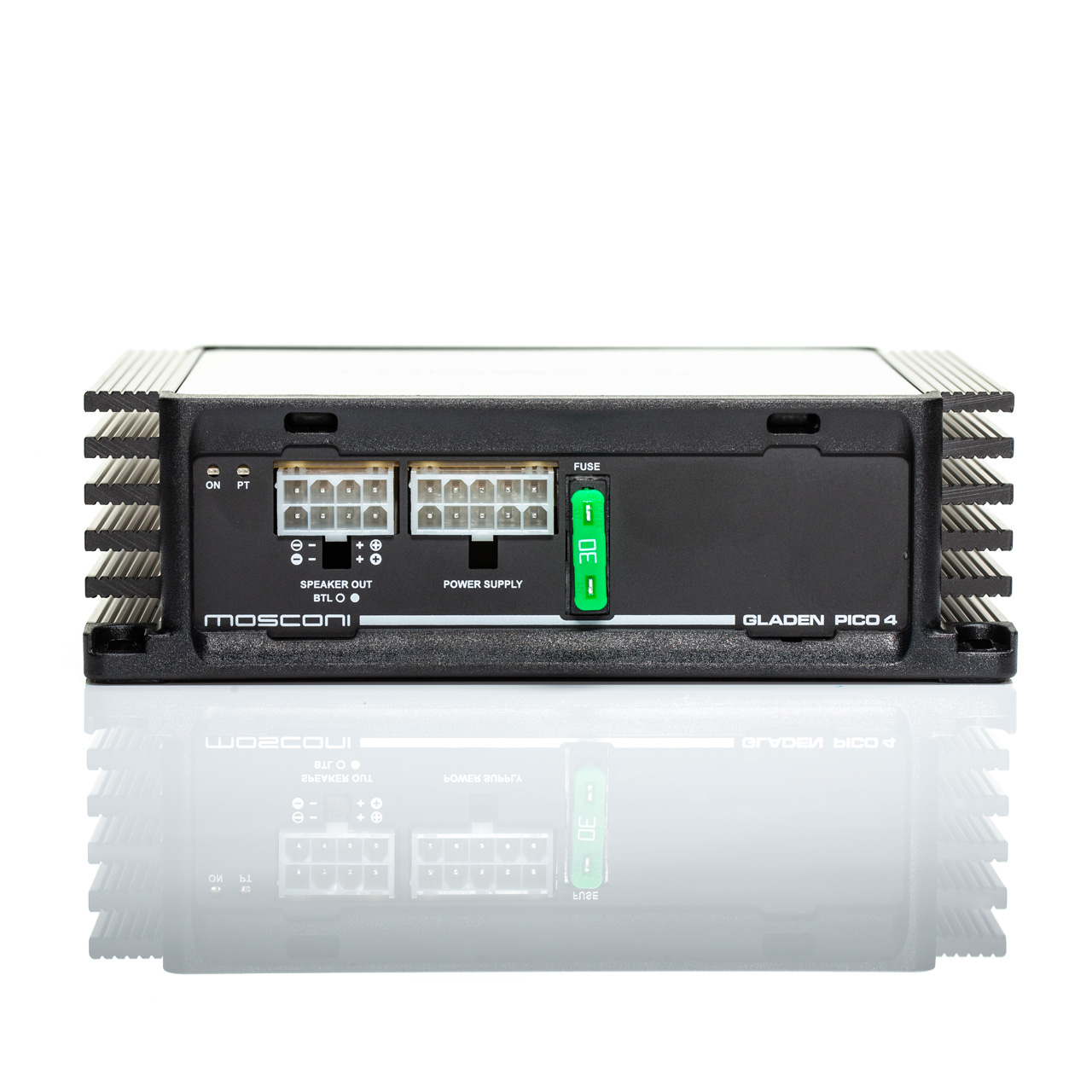

Molex connectors
Compact design
High current efficiencyCrossover for semi active operation (Pico 4 SA)
Available as 24 Volt version (Pico 4 only)
OUTPUT POWER
Output power RMS @ 4Ω: 4 x 90 Watts
Output power RMS @ 2Ω: 4 x 120 Watts
Output power RMS @ 4Ω: 2 x 85 Watts + 1 x 245 Watts (bridged)
Output power RMS @ 4Ω: 2 x 240 Watts (bridged)
Specifications
Input voltage: 0.3 - 20 V
Overall efficiency: > 75 %
Auto-On (only High Level): Off - BTL
Channel 1+2 Filter (HP) : Off – 80 Hz (12 dB/Oct)
Channel 3+4 Filter (HP/LP): Off – 80 Hz (12 dB/Oct)
Channel 1+2 Filter (HP): Off – 280 Hz (12 dB/Oct) - Pico 4 SA
Channel 3+4 Filter (HP/LP): Off - 220 Hz (12 dB/Oct) - Pico 4 SA
Dimensions: 150 x 115 x 46 mm
Weight: 1050 Gramm
