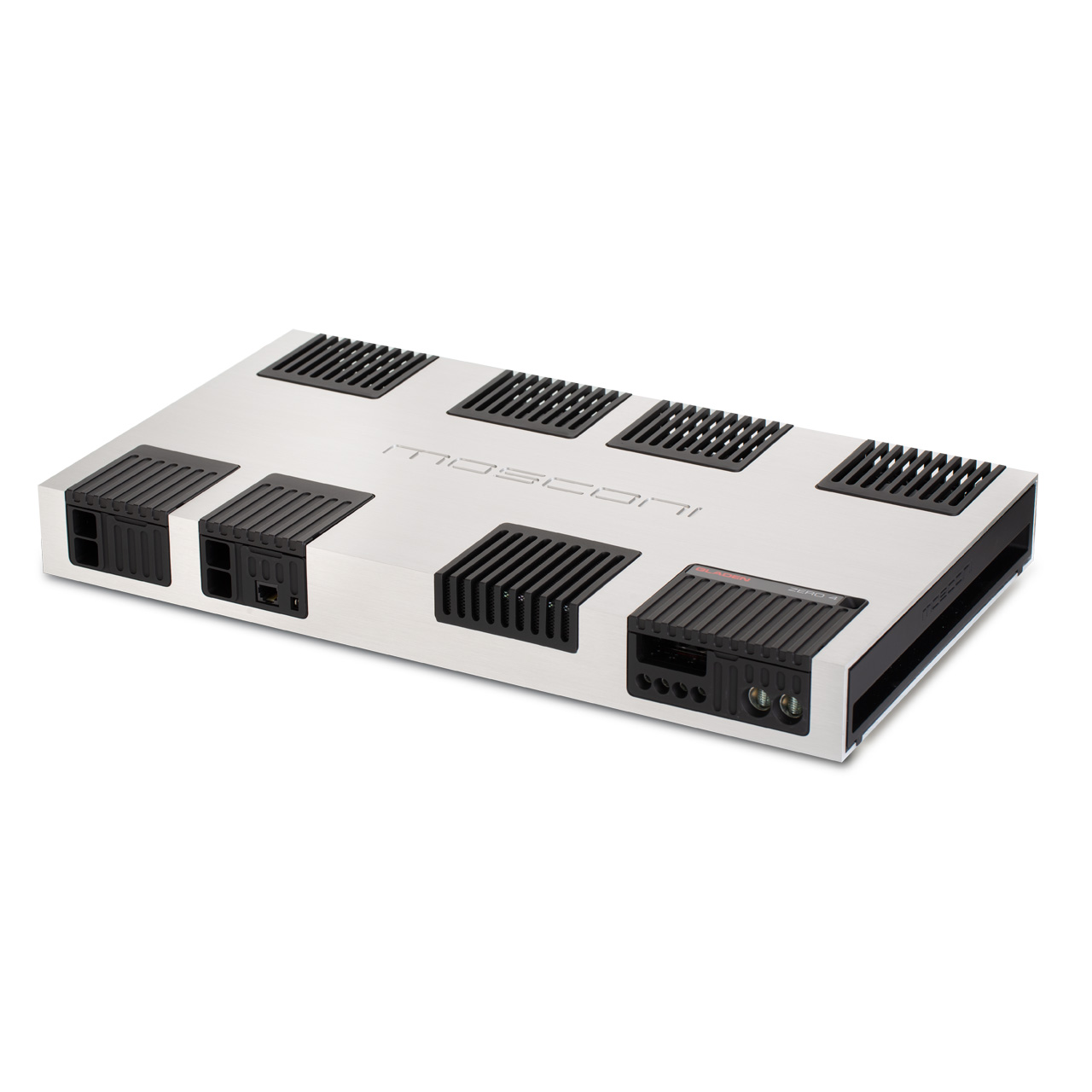

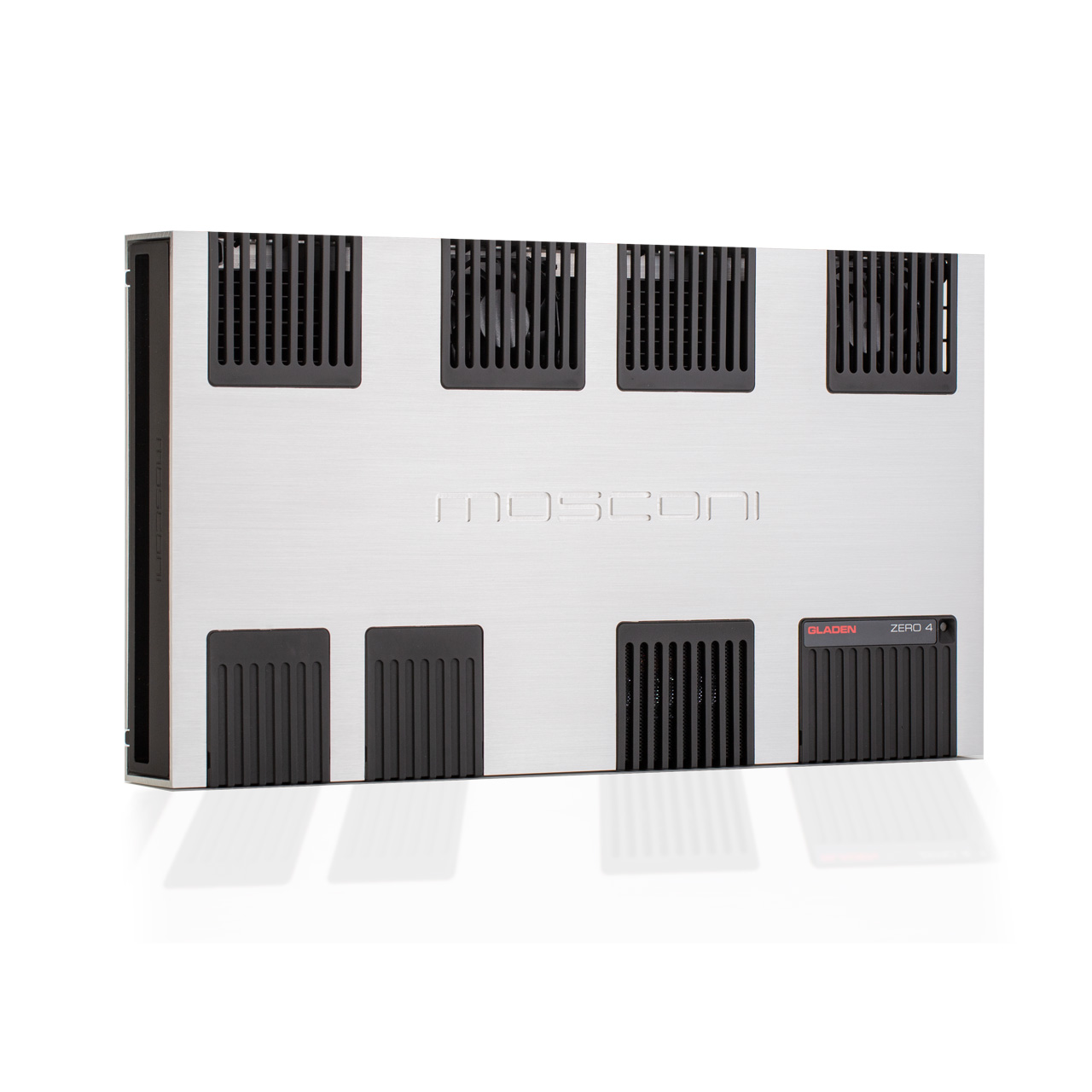

Mosconi Zero 4
4 channel high end amplifier
4 channel amplifier
AB Class technology
2 x 100 Watts + 2 x 210 Watts @ 4 Ohm
The MOSCONI Zero 4 amplifier has an asymmetrical output power of 2 x 100 Watts, plus 2 x 210 Watts RMS. This power distribution is optimized for active 2-way speaker operation or a speaker/subwoofer combination. Separate power supplies ensure low "crosstalk" between channel pairs and full power output even at maximum demands.
Class AB, fully MOSFET
1 Ohm stable
Very low THD and IMD
Regulated power supply
High/low level selector switch (HL/LL)
Automatic REMOTE function
Cross Over with separate high pass and low pass filter, band pass allowed
Remote volume control RTC_MOS (optional)
Soft touch side panels with red LED illumination
Power Output
Output power channel 1 + 2 @ 4Ω: 2 x 100 Watts
Output power channel 1 + 2 @ 2Ω: 2 x 145 Watts
Output power channel 3 + 4 @ 4Ω: 2 x 210 Watts
Output power channel 3 + 4 @ 2Ω: 2 x 325 Watts
Bridged output power channel 1 + 2 @ 4Ω: 1 x 290 Watts
Bridged output power channel 3 + 4 @ 4Ω: 1 x 650 Watts
Bridged output power channel 3 + 4 @ 2Ω: 1 x 900 Watts (reduction of output power on channel 1 + 2)
Specifications
Input sensitivity: 0.39 V ÷ 8.6 V (LL) / 1.1 ÷ 25 V (HL)
Crossover:
CH 1/2 FILTER 1: 20 ÷ 175 Hz (HP or LP x 1 / x 10)
CH 1/2 FILTER 2: 50 ÷ 300 Hz (HP or LP x 1 / x 20)
CH 3/4 FILTER: HP (20 ÷ 175 Hz ) & LP (50 ÷ 300 Hz)
FILTER 1 + FILTER 2 ( CH1/2) band pass allowed
FILTER (CH3/4) band pass allowed
12 dB/Oct – 0.7 (stereo & mono)
Dimensions: 450 x 250 x 50 mm
Weight: 5,1 kg
